AfterVLX 80 Fixed / Picture Window in Los Angeles, CA | Juniper Windows & Doors
The VLX 80 Fixed / Picture Window is a non-operable aluminum window built for one thing: unimpeded views. Because it doesn’t open, there’s no sash hardware, no cranks, no hinges. Just glass, held in a frame so slim it nearly disappears. Los Angeles homeowners choose this window for floor-to-ceiling installations, stairwells, great rooms, and any wall where the view is the point. Juniper Windows & Doors is an authorized ViewLux installation partner in Los Angeles, CA, which means you get the product at full warranty strength, set level, plumb, and square by a crew that installs this exact system regularly. Call (682) 281-2168 to talk specs, pricing, or schedule a free measurement.
Product Overview – VLX 80 Fixed / Picture Window

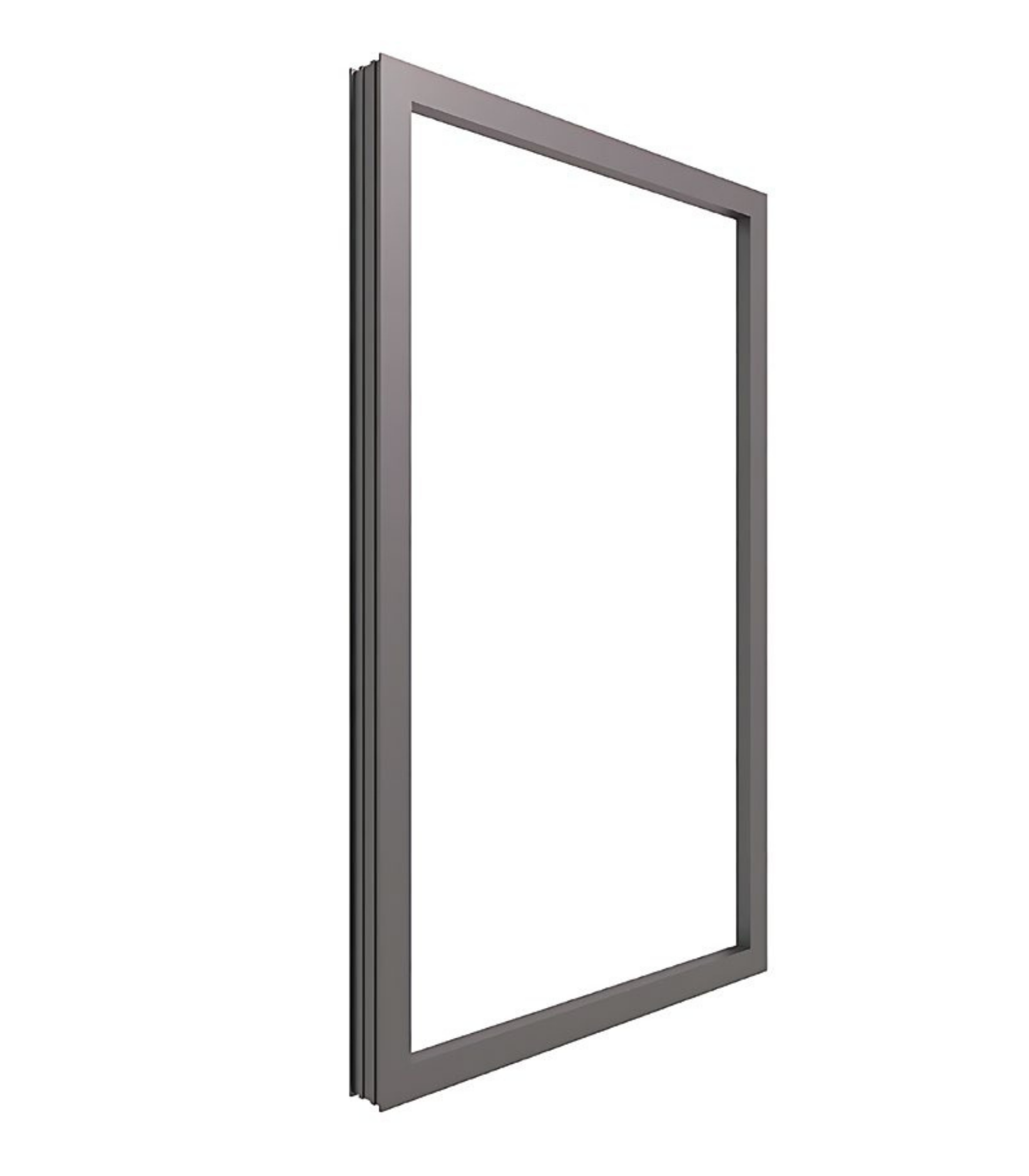

The VLX 80 is what builders call a “maximally glazed” system. That means the glass-to-frame ratio skews as far toward glass as engineering allows. The frame itself measures just 1.97 inches in profile width, so on a 60-inch window, the aluminum edge you actually see is barely more than a finger’s width. No visible hardware. No vents. No clutter. Just a clean aperture of glass.
This is the window architects in Los Angeles reach for when the project calls for a wall of light. It works beautifully in mid-century modern homes in the hills, industrial loft conversions downtown, and the clean-lined new builds going up in Venice and Culver City. Because it’s a fixed unit, the VLX 80 delivers the best possible thermal and acoustic performance of any window in its class. No moving parts means no air leakage paths, no worn weatherstripping, no rattling. Once it’s sealed, it’s sealed.
ViewLux builds the VLX 80 series around an aluminum frame with wall thickness of 0.079 inches. That’s a substantial extrusion. It resists racking, stays straight through heat cycles, and gives installers a solid anchor surface. For homeowners in Los Angeles neighborhoods like Studio City or Silver Lake, where glass walls face direct afternoon sun, that frame stability is what keeps seals intact and views distortion-free year after year. Maximum span runs up to 120 inches wide, so single-pane-of-glass openings are genuinely achievable.
Technical Specifications
- Frame profile width: 1.97 inches, narrow enough to maximize glass area without sacrificing structural rigidity.
- Extrusion wall thickness: 0.079 inches, engineered to hold large fixed glass panels without bowing or twisting.
- Maximum span capability: Up to 120 inches wide, subject to site wind-load calculations and code review in Los Angeles, CA.
- Glass options: Clear, Frosted, Low-E, Tempered, Laminated, Gray Tint, Black Tint.
- Frame finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
- Operation type: Fixed / Non-operable (picture window). No sash, no hardware, no screen required.
- Installation standard: AAMA 2400/2410 compliant, low-expansion foam sealant on all perimeter joints per AAMA 812.
Performance Features
Thermal Efficiency
Thermal break technology: The VLX 80 frame includes a thermal break, a non-conductive barrier between interior and exterior aluminum faces. This stops heat from walking through the metal into your house during a Los Angeles heat wave, and keeps air-conditioned air inside during summer peaks. NFRC-rated performance gives you real numbers to compare against other aluminum systems, which historically lagged vinyl and wood on energy performance. This series was engineered to close that gap.
Acoustic Performance
Sound control: Fixed windows outperform operable units on noise reduction by a wide margin, simply because there are no gaps. Add laminated glass and you get meaningful relief from street noise. That matters on busy Los Angeles corridors like Sunset, Wilshire, or Ventura Boulevard, where traffic hum is a constant. Acoustic performance is measurable, and we’re happy to spec a glazing package to match the decibel reality of your street.
Airtightness & Weather Seal
Airtightness: The VLX 80 ships with no seals to wear out because there’s no sash. Installation is where airtightness is won or lost, which is why every Juniper Windows & Doors setting includes AAMA 812 low-expansion foam sealant on all perimeter joints. This expands to fill every void, then cures solid, creating a monolithic seal between window and rough opening. No drafts. No dust intrusion. No air leakage paths.
Waterproofing
Waterproofing: Los Angeles may not get rain every week, but when atmospheric rivers hit, windows face real water pressure. Our installation protocol includes a pan flashing system and a final water test on every fixed window we set. AAMA 2400/2410 compliance is the standard we work to because it governs installation methods specifically for window performance. A window can be waterproof in a lab and leak in a wall if it’s not set correctly. We set it correctly.
Wind Resistance
Wind-load rating: Southern California’s geography creates real wind corridors, from Santa Ana gusts in the Inland valleys to onshore flows hitting beachfront glass in Malibu and Pacific Palisades. The VLX 80’s structural design holds up under those loads, and we spec the appropriate glass thickness for your specific wind-zone requirements. Large fixed panels carry more wind surface area, so wind-load calculations are not a corner we cut.
Security & Hardware
Security: Fixed windows are inherently hard to breach because there’s no latch to force. Add impact-resistant laminated glass and you get a system that resists forced entry and also holds together under impact, like a baseball or a stray branch. For Los Angeles homeowners concerned about ground-floor security, a VLX 80 with laminated glazing is one of the most robust window configurations you can install. No visible hardware, nothing to pick, nothing to pry.
Color & Glass Options
Six frame finishes give you real design latitude. Premium Black is the go-to for modern and industrial builds across Los Angeles, it reads clean and architectural, and frames outdoor views with crisp contrast. Pure White suits coastal and traditional homes, disappearing into white stucco and bright rooms. Anodized Silver offers a raw aluminum aesthetic that works exceptionally well in loft spaces and concrete-heavy architecture. Bronze carries a warm, mid-century timbre that pairs well with teak and walnut interiors. Champagne reads as soft gold, ideal for cream-colored Mediterranean and Spanish-style homes common across Los Angeles. Teak Wood brings wood-tone warmth without the maintenance of real timber, useful in rooms where you want warmth but need durability.
On glass: Low-E is the default recommendation for energy performance in sun-exposed Los Angeles rooms. Tempered glass is code-required in certain locations, including windows adjacent to doors and low-sill applications. Laminated glass cuts noise and adds security. Frosted works for privacy where you still want natural light, like bathrooms and street-facing powder rooms. Gray Tint and Black Tint reduce glare and solar heat gain without visible window film. Clear glass lets the view run unaltered.
Installation by Juniper Windows & Doors in Los Angeles
A fixed picture window lives or dies by its installation. The product can be excellent, and we believe the VLX 80 is, but if it’s set out of square, under-sealed, or improperly flashed, the homeowner inherits leaks, drafts, and a manufacturer warranty that won’t cover failure caused by bad installation. That’s the single most important reason to have an experienced crew handle this window in Los Angeles, CA.
Our installation process starts before the window arrives. We measure the opening, check rough framing for square and level, and verify the wall cavity is ready to receive the new unit. Then we order the VLX 80 to your exact spec, including the correct glass package for wind-load and energy requirements. On install day, the old window comes out, the opening is prepped and cleaned, and we dry-fit the new frame. We set the window level, plumb, and square, then anchor it to the structure. Every perimeter joint gets AAMA 812 low-expansion foam sealant, which eliminates the air gaps that cause misting, condensation, and energy loss. The exterior receives flashing and sealant per AAMA 2400/2410 standards. Finally, we run a water test, inspect the work, and clean the site.
Los Angeles building codes require permits for window replacements in most jurisdictions, including the City of Los Angeles. We handle the paperwork, pull the permit, and schedule the inspection. If an inspector notes a correction, we fix it. That’s how warranty-safe installation works, and it’s why the ViewLux warranty stays intact on every window we set.
Frequently Asked Questions – VLX 80 Fixed / Picture Window
Lead time for a VLX 80 Fixed / Picture Window runs roughly 3 to 6 weeks from order confirmation, depending on the glass package and frame finish you select. Frosted, tinted, and laminated glass add the most time, while clear Low-E in standard finishes moves fastest. Once the unit lands at our Los Angeles shop, installation usually takes one day for a standard replacement. Call (682) 281-2168 to confirm current lead times, they fluctuate seasonally.
The VLX 80 can qualify for federal energy tax credits when equipped with the appropriate Low-E glazing package, since fixed windows with thermal break technology typically meet or exceed ENERGY STAR requirements for the Southern California climate zone. Your eligibility depends on the specific glass and coating combination selected for your project. We’ll provide the performance documentation you need to claim the credit on your return when we quote your project.
ViewLux backs the VLX 80 with a manufacturer’s warranty covering the frame, finish, and seal integrity, provided the window is installed by a qualified professional to AAMA standards. Juniper Windows & Doors installation carries its own workmanship warranty as well. One caution: if a fixed window is installed incorrectly, glass stress cracks, perimeter seal failures, and water intrusion are typically excluded from coverage. Installation by our crew protects your warranty from day one.
Yes, the VLX 80 Fixed / Picture Window can be manufactured to custom dimensions up to 120 inches wide, making it adaptable to a wide range of openings. We order each unit per-opening, so you’re not limited to stock sizes. During your free on-site measurement, we’ll assess your rough opening, check what the framing can carry, and recommend the largest glass area that stays structurally sound given your wall assembly and Los Angeles wind-load requirements.
Maintenance on a fixed aluminum frame is minimal: wipe the frame down with mild soap and warm water twice a year, and clean the glass with a non-abrasive cleaner. Inspect the perimeter caulking annually, especially after heavy rain. Aluminum doesn’t rot, warp, or need repainting, which is a meaningful benefit for Los Angeles coastal properties exposed to salt air. Keep drainage paths, called weep holes, clear of debris, especially during Santa Ana dust season.
Get a Quote – VLX 80 Fixed / Picture Window in Los Angeles
If you’re considering a VLX 80 Fixed / Picture Window for your home in Los Angeles, CA, the next step is a free on-site measurement and quote. We’ll confirm feasibility, help you choose the right finish and glass package, and give you a firm line-item price before any work begins. No pressure, no obligation. Call (682) 281-2168 today to schedule yours.
Written by the team at Juniper Windows & Doors, serving Los Angeles, CA.
