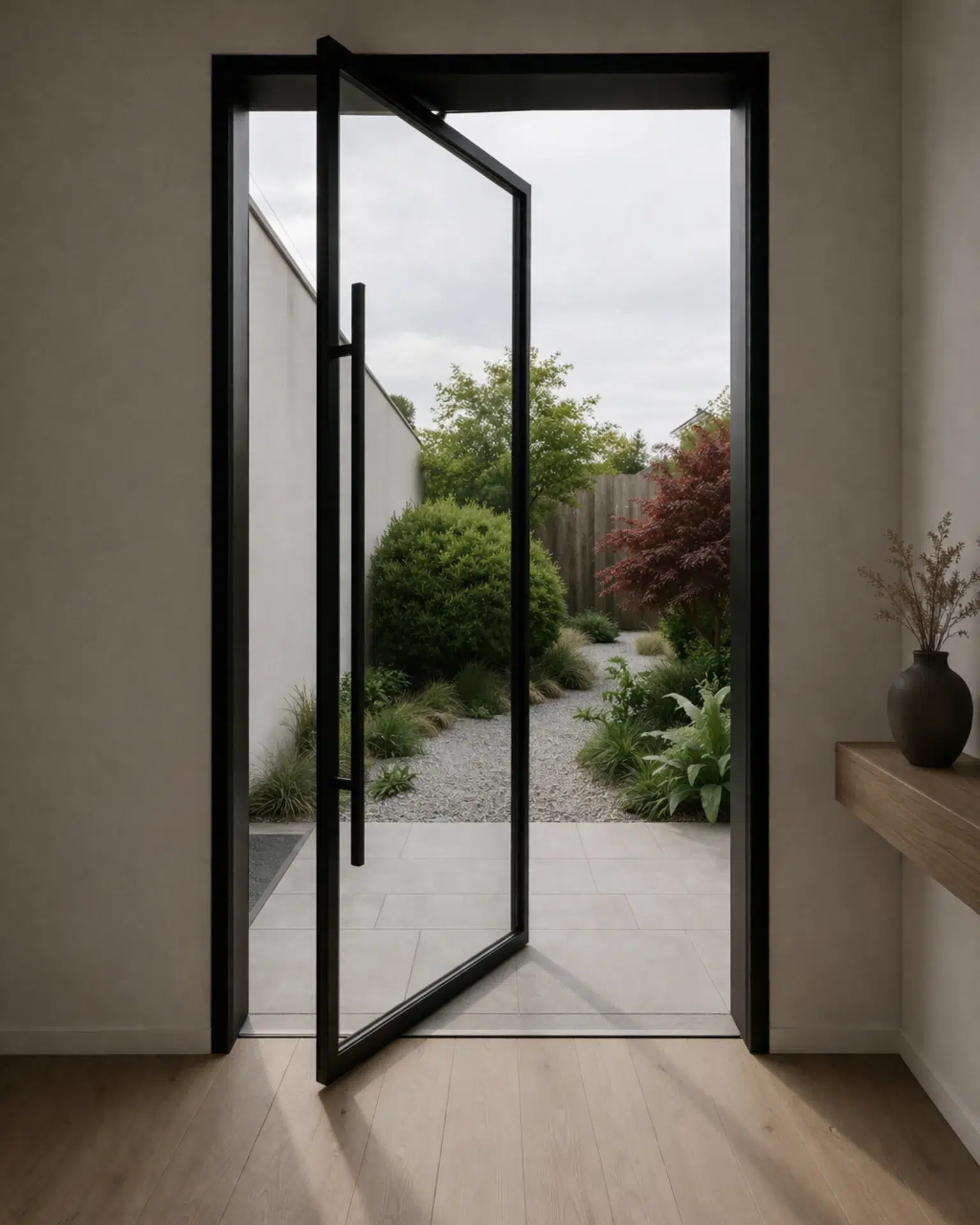

The VLX 100 is a full-height aluminum pivot door built around a vertical center axis, which means it swings open on a point instead of side hinges. That single change transforms how a doorway feels: the panel becomes an architectural feature rather than just an opening. Juniper Windows & Doors is an authorized ViewLux installation partner in Los Angeles, and we sell and install this exact model across the city, from Silver Lake to Brentwood to Pasadena. If you’re planning a modern entry, a courtyard-facing great room, or an interior divider that needs to make a statement, call us at (682) 281-2168 and we’ll walk through sizing, glass, and budget together.

Call (682) 281-2168

Product Overview – VLX 100 Pivot Door

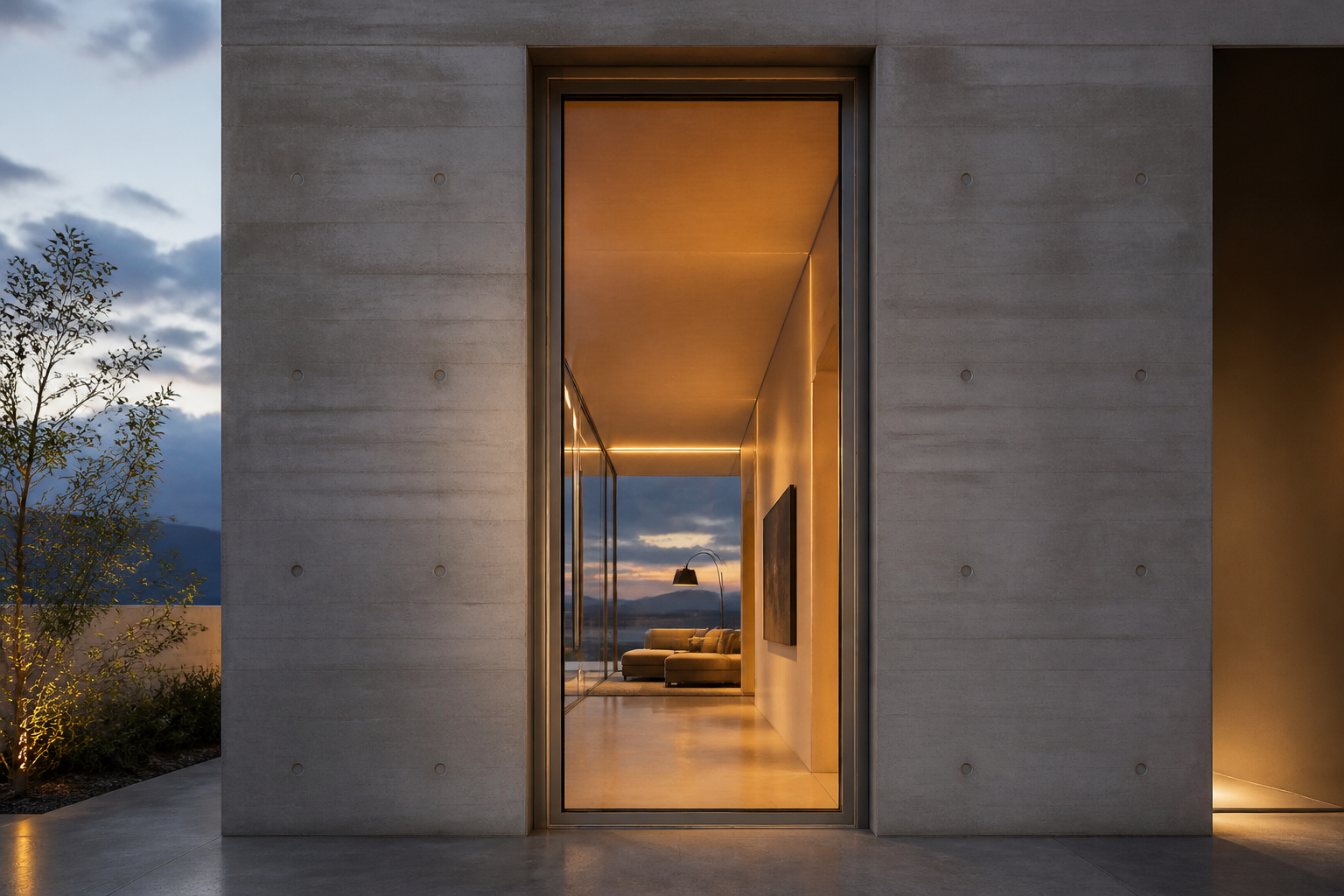

The VLX 100 is the door you choose when the opening itself is part of the design. It’s a heavy-duty aluminum pivot door, rotating on a vertical center axis rather than traditional butt hinges, and it’s engineered for oversized glass panels that turn an entryway into a viewing wall. We’ve installed these in Los Angeles homes where the entire rear facade opens to a canyon or pool, and in front entries where the door is the first thing guests notice.

Buyers choose this series for three reasons. First, scale: the VLX 100 spans up to 60 inches wide by 120 inches tall, which covers openings a conventional side-hinged door can’t handle without sagging. Second, materials: the aluminum profile is 2.56 inches wide with a 0.098-inch wall thickness, which gives the frame enough structural rigidity to carry a full sheet of tempered glass without flexing over decades. Third, presence: a pivot door divides a room differently because the pivot point sits a few inches inward from the edge, so the door swings in a sweeping arc instead of folding against a wall.

Architecturally, this series fits modern, mid-century, and contemporary homes best. Los Angeles is full of post-and-beam houses and glass-forward builds where a pivot door doesn’t compete with the architecture, it completes it. ViewLux manufactures the VLX 100; Juniper Windows & Doors handles the local sale, precise measurement, and installation. That split matters more than people expect, because a pivot door this large has zero tolerance for sloppy installs.

Technical Specifications

The core specs of the VLX 100 are straightforward, but each number carries real weight in the field. Here’s what the system offers, stated plainly:

• Profile width: 2.56 inches, machined aluminum with a clean sightline.
• Wall thickness: 0.098 inches, which is heavier than most residential aluminum frames and explains the door’s resistance to racking.
• Maximum panel size: 60 inches wide by 120 inches tall. At full span, the panel can weigh several hundred pounds, which is why the pivot hardware is floor-bearing, not wall-bearing.
• Glass options: Clear, frosted, obscure, Low-E, tempered, and laminated. Tempered is standard for safety; laminated adds impact resistance and sound isolation.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood.
• Operation: Floor-mounted pivot at the header and threshold, with a concealed closer available for controlled closing.

Performance Features

Thermal Efficiency
Aluminum conducts heat fast, which is why the VLX 100 uses a thermal break inside the extrusion that separates the interior and exterior faces of the frame. The break slows heat transfer enough to earn NFRC-rated energy performance values, and in a Los Angeles climate where west-facing entries bake in afternoon sun, that reduction is noticeable on the interior surface of the door. Pair it with Low-E glass and the door contributes to the home’s overall cooling load instead of working against it.

Acoustic Performance
Los Angeles street noise doesn’t stop at the front gate: it comes through the door. The VLX 100’s continuous perimeter gasketing and the mass of a thick aluminum frame reduce sound transmission meaningfully, and upgrading to laminated glass changes the picture entirely. Laminated glass uses a resin interlayer that interrupts sound waves, which is why we recommend it for any pivot door facing a busy street, a canyon with amplified traffic, or a neighbor’s HVAC unit.

Airtightness & Weather Seal
A door that big should still seal like a small one. The VLX 100 uses compression gaskets that run continuously around the panel, so there are no breaks at the corners where air leaks typically start. Combined with proper installation, this is what keeps conditioned air inside and dust from the Santa Anas outside. The difference shows up in year-round energy use and in how the entry feels on a windy day in the Valley.

Waterproofing
On any door exposed to rain, the waterproofing system is the line between a clean entry and a failed threshold. The VLX 100 is designed with internal drainage channels that direct any water that gets past the outer seal back to the exterior, rather than letting it pool against the frame or soak into the subfloor. Every Los Angeles install gets a final water test before we call the job done.

Wind Resistance
Pivot doors this tall behave like a wall when the wind hits them, especially in hillside Los Angeles neighborhoods where gusts funnel through canyons. The VLX 100 is wind-load rated for the local climate requirements, and the hardware is sized so the door stays stable under positive and negative pressure. We verify the anchoring details during the pre-installation inspection and adjust for the specific exposure of each opening.

Security & Hardware
The pivot mechanism itself is a steel floor bearing and header pin assembly, not a decorative hinge. This is a structural system. Multi-point locking is available, and the laminated glass option adds an impact-resistant layer that significantly slows forced entry. For Los Angeles homeowners this combination matters: a door this large must secure like an entry, not like a patio slider.

Color & Glass Options

The VLX 100 comes in six finishes, and the choice says a lot about the house. Premium Black reads architectural and clean against white stucco or concrete, which is why it’s the most-ordered finish in Los Angeles right now. Pure White suits Spanish-style and Mediterranean homes and holds up well under sun. Anodized Silver is the classic aluminum look, honest and industrial. Bronze works beautifully on mid-century homes with warm wood and stone. Champagne is subtler than silver, warmer than gray, and pairs with brass or gold hardware. Teak Wood is a wood-grain finish on aluminum, giving the warmth of timber without the maintenance of real wood on a door that faces Los Angeles sun and coastal air.

Glass selection depends on placement. Clear tempered glass maximizes the view. Frosted and obscure give privacy without blinds, useful for front entries or interior dividers. Low-E cuts heat gain. Tempered is the safety baseline, and laminated adds impact resistance and sound isolation. We help you match the combination to the direction the opening faces and what’s on the other side.

Installation by Juniper Windows & Doors in Los Angeles

A pivot door of this size is not a replace-the-slab afternoon job. The panel can reach ten feet tall and weigh hundreds of pounds, and the pivot point has to be placed where the floor can carry the load. That’s why Juniper Windows & Doors treats every VLX 100 install as a small structural project.

We start with a pre-installation inspection of the rough opening, subfloor, and header. A pivot door transmits weight down through the floor bearing, so we check the condition and composition of the slab or framing before ordering the panel. Then we measure three times and confirm the pivot offset, because the offset determines the door’s swing arc and how it sits against the frame when closed.

On install day we set the door level, plumb, and square. Those aren’t buzzwords in our shop, they’re the difference between a door that closes perfectly and one that rubs at the top corner every summer. We use AAMA 812 compliant low-expansion foam sealant on every perimeter joint, which seals the gap without bowing the frame. The entire installation follows AAMA 2400 and 2410 installation standards, the recognized benchmark for proper window and door installation in North America. Then we run a final water test, check operation across the full swing arc, and clean the site before we leave.

The reason this matters is straightforward: an improperly installed pivot door voids the manufacturer warranty. The frame flexes, the seals compress unevenly, the pivot bearing wears prematurely, and the door never feels right. In Los Angeles, where some openings face relentless sun and others take ocean-driven rain, proper installation is the single biggest variable in how long the door lasts. Hiring an authorized ViewLux installation partner like Juniper Windows & Doors protects the product, the warranty, and the investment.

Frequently Asked Questions – VLX 100 Pivot Door

Get a Quote – VLX 100 Pivot Door in Los Angeles

If you’re considering the VLX 100 for your Los Angeles home, start with a free on-site measurement. We’ll check the opening, confirm the pivot placement, walk through glass and finish options, and give you a written line-item quote with no change orders after the fact. Call Juniper Windows & Doors at (682) 281-2168 to schedule your consultation.
